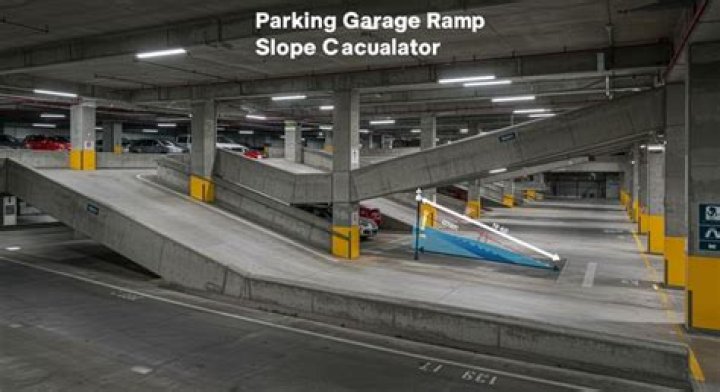

How wide is a parking garage ramp?

A straight one-way ramp shall be at least fourteen (14) feet in width. A two-way ramp shall be at least twenty-four (24) feet in width. The minimum outside wall radius of a circular ramp shall be thirty-six (36) feet.

What is the standard size of a parking spot?

The minimum size of a standard parking space shall be nine feet wide and eighteen feet long. Parking spaces within enclosed garages shall have an interior dimension of at least ten feet wide and twenty feet long. The minimum size of a compact parking space shall be eight feet wide and sixteen feet long.

What is the maximum slope for a car ramp?

6.67%
A parking ramp slope of 5% or less is preferred, although parking ramp slopes up to 7% are tolerated by the public in very dense urban areas. Parking ramp slopes should not exceed a 6.67% slope, which is the maximum parking slope permitted in the International Building Code (IBC).

What size should a car parking bay be?

It says that as a minimum, parking bays should be 4.8 metres long by 2.4m wide. According to accident aftermath specialist Accident Exchange in 2016, 87 per cent of local authorities use these dimensions. On the road, bays should be between 4.5m and 6.6m long and 2.7m and 1.8m wide.

What is parking efficiency?

Parking index: Parking index is also called occupancy or efficiency. It is defined as the ratio of number of bays occupied in a time duration to the total space available. It gives an aggregate measure of how effectively the parking space is utilized.

What is a comfortable slope to walk on?

The slope is one inch vertically for every 16 inches horizontally. The maximum good slope is easily manageable by both people walking and wheelchair users, so I think it is. The ADA requires that ramps rise no higher than 30 inches.

How do you show parking ratio?

You calculate it by dividing the building’s number of spaces by its total square footage in thousands of feet. For instance, take a 40,000 square foot building with a 200 space parking lot. Divide 200 (spaces) by 40 (thousand square feet) to find a parking ratio of 5 spaces per 1,000 square feet of space.

What is parking duration?

Average parking duration: It is the ratio of total vehicle hours to the number of vehicles parked. Parking turnover: It is the ratio of number of vehicles parked in a duration to the number of parking bays available. This can be expressed as number of vehicles per bay per time duration.

What is the hardest type of parking?

34% of drivers find parallel parking the most difficult parking technique. 8% of drivers admit to bumping the car in front or behind while parallel parking. Drivers say finding a parking space is the 15th most stressful thing in life.

What is the easiest form of parking?

Angle parking is similar to perpendicular parking, except the cars are aligned in an angle. Normally the angle is aligned with the direction cars approach the parking space. It makes it a lot easier to drive into the parking space in contrast to perpendicular parking, where the parking space is at a 90 degree angle.

What is the best angle for a ramp?

Bottom line: recommended ramp slope: The preferred slope for a building access ramp is 1:12 or 1 inch of rise per 12 inches of horizontal run – that’s roughly an 8% slope also written as a 4.8 degree angle slope.

How long does a ramp need to be for 3 steps?

Here are some factors that should be considered: Stairs typically run about 7.5 inches high each so for three stairs a standard rise or height would be about 22 inches. The ADA [Americans with Disabilities Act] recommends 1 foot for ramp for every one inch of rise.

How steep a slope can you walk up?

Kram said the findings also indicate that you can still get a good aerobic workout simply by walking up very steep trails. Athletes run or walk up steep slopes ranging between 10 degrees and 30 degrees in order to ascend 1,000 meters over a distance of less than 5 kilometers, or about 3.1 miles.

How is parking area calculated?

Theoretically, the requirement of parking space amount can calculated using the ratio method R = L / SRP. The ratio method is based on the ratio of the floor area of the building (L) to the units of parking space (SRP), which is divided into road sections or parking blocks.
